APPLICATIONS:
Identify people with elevated temperatures

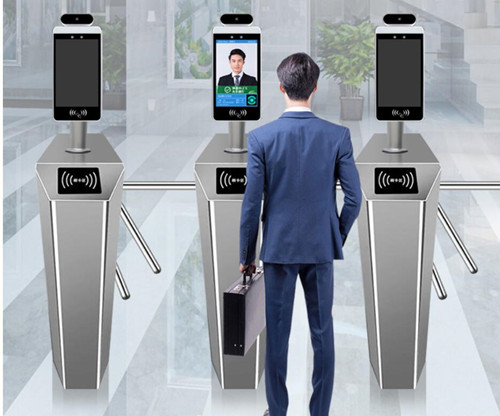

Allow entry into a location according to a permitted temperature range
Identify users so that they can keep their masks on at all times
Flag people who aren’t wearing protective coverings
Send an email/text upon an event
SPECIFICATIONS
Screen size: 8 inches
Resolution: 800 x 1280 portrait
Face Capacity: 20,000
Accuracy/passing rate: 99%
Device response time: 0.2ms
Facial Recognition time: 0.65ms
Facial recognition distance: 11.8 inches – 98.4 inches (8.2 feet) (0.3-2.5m)
Temperature read distance: 19.6 inches – 29.5 inches (0.5~ 0.75m)
Temperature range: 50° F ~ 122° F (10℃~ 50℃)
Temperature accuracy: ± 0.3 degrees
Support card: EM/Mifare (option)
Relay control: NC/No/Com
Protection Level: IP54
Communication: TCP/IP, Wiegand
Product Dimensions/Size: 11.49 x 5.11 x 1.33 inches (292 x 130 x 34mm)
Infrared Thermal Scanner detects an elevated temperature
Displays in degrees Fahrenheit or degrees Celsius
Temperature measurement accuracy: Plus or minus 0.3 degrees
Supports Facial Recognition even when wearing a face mask
Supports 20,000+ faces in the database
8-inch HD Highlight LCD Touch Screen Display
Internal Star Light Wide dynamic-level camera with automatic exposure
Optimal imaging in complex lighting environments
In-depth learning algorithms designed for speed and accuracy
Monocular-visible living algorithms, support for photos, videos, anti-spoof
Support for multiple recognition modes: Face, Face + Card, Smart Cards
A built-in wide dynamic infrared camera and temperature measurement module
The device uploads directly to a data network in real-time and learns faces with ‘cached’ images
Uses new or imported identification numbers
Face blacklist controls can integrate with police photo ID database
Supports login management, query and set device parameters, data import/export
Supports USB interface to an external ID card reader (Optional built-in ID card reader)
Authentication result output in fixed voice prompts
Relay switch output through international standard Wiegand protocol (W26 \ W34)
Weather-resistant design

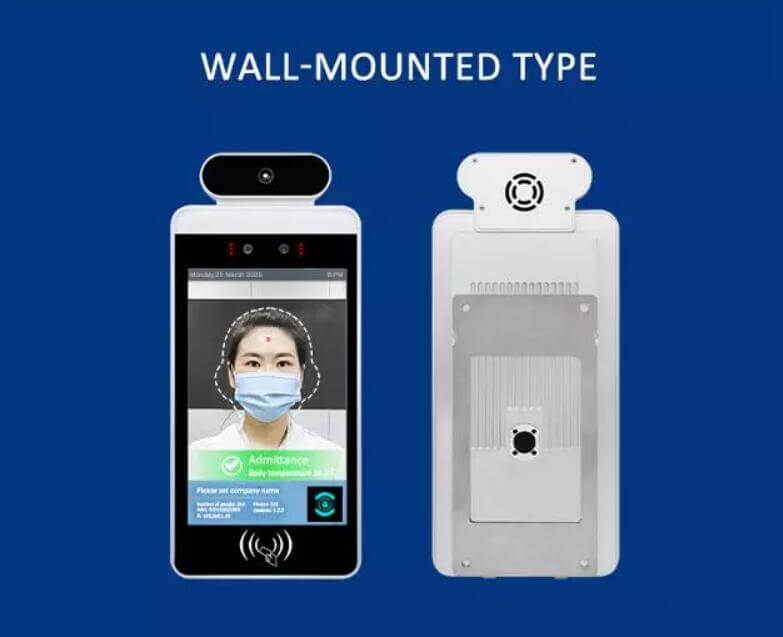

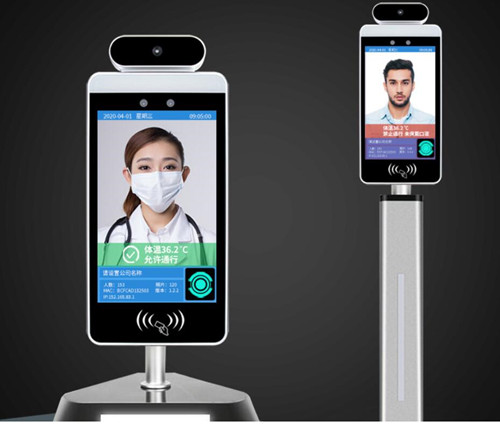

Specify Wall Mount, Post Mount, or add a Post Mount Kit
Optional Post Mount Kit includes (1) 5 ft Post (round, stainless steel) with floor mounting hardware
Units are turned on and tested for 48 hours before shipment
OVERALL DIMENSIONS: 11.49 x 5.11 x 1.33 inches
SHIPPING PACKAGE (per 1 unit): size 15 x 5 x 7 in, weight 12 lbs
