Overview:

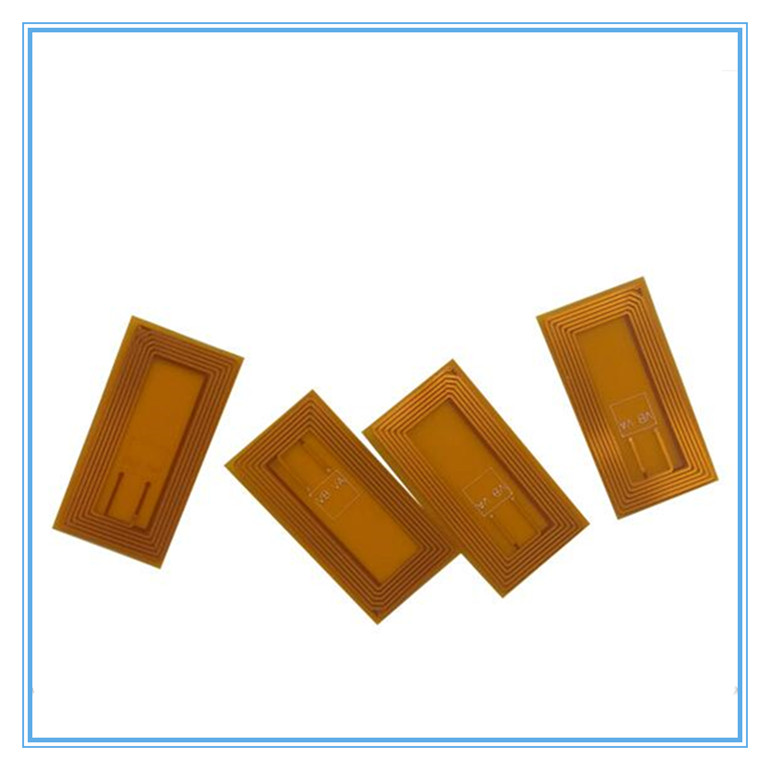

FPC (flexible printed circuits) is a PCB that has flexibility, also known as a flexible PCB, using insulating
films as a material and copper antenna. Because of their excellent thinness, lightness, softness and
durability, they are used for downsizing and high-density implementation of electronic devices and

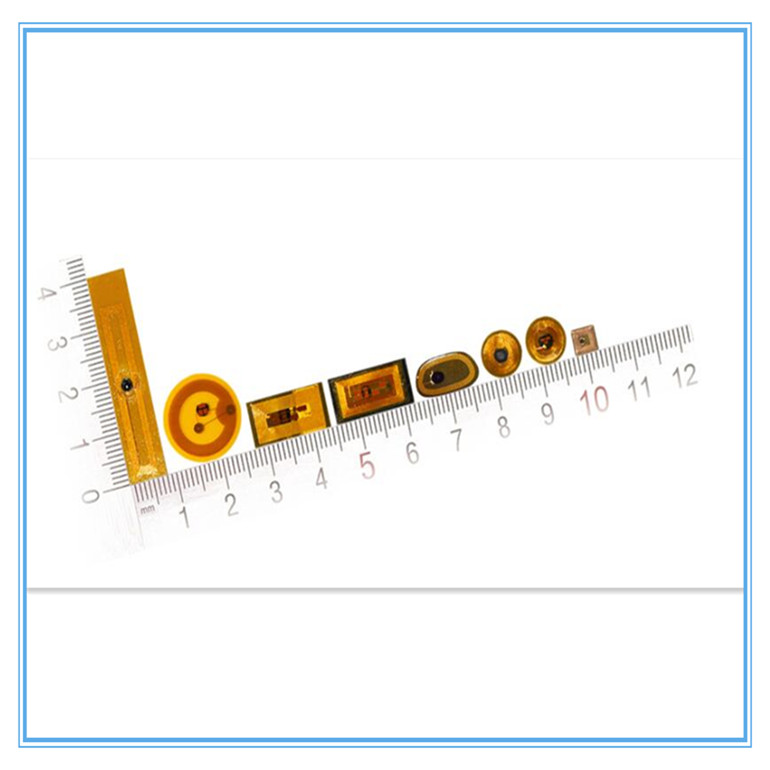

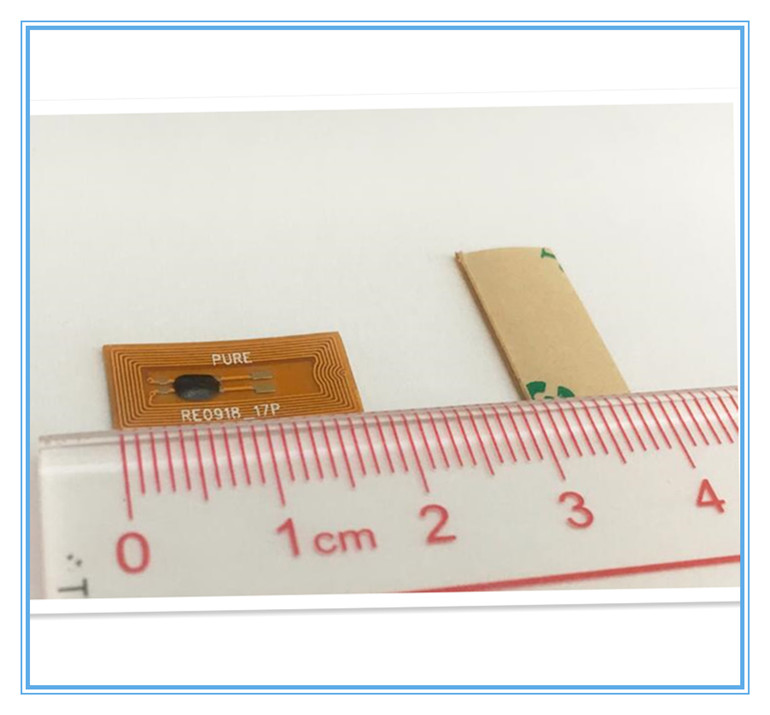

products that require flex resistance. We designed the tiny FPC copper RFID tag in the smallest size from
diam 10mm to diam 50mm, it can be work on plastic or work on metal surface.
Technical specification:
Material |
FPC basic material with copper antenna |
Protocol |
ISO 14443A or ISO15693 |
Frequency |
13.56MHz (HF) |
Chips |
Mifare 1k, NTAG 213, NTAG215,NTAG216 etc. |
Reading distance |
0.1~5cm(depend on reader, tag and working environment ) |
Dimension |
Dia8mm ,Dia10 mm,Dia18 mm, 8*12 mm, 8*14 mm, 12*18 mm, 6*16 mm, 15*15 mm, 9*18 mm. |
Working mode |
read-only or read-write according to chip type |
Read/write endurance |
>100,000 times |
Customized serivice |
1. custom printing logo, text 2. pre-code: URL, text , numbers 3. size, shape |
Working temperature |
-25℃to+80℃ |
Feature |
Waterproof, moisture proof, anti-vibration, heat-resistant |
Application:
Tool tracking, identification. Soft material easy to insert or integrate to any small products.
Assurance:
100% quality grantee and refund.
Company profile:
D.O RFID TAG Manufacturer provides complete, reliable, high performance RFID infrastructure systems for item-leave tracking in a variety of industries.
Our unique RFID expertise, combined with a true understanding of RFID business processes,
makes us the ideal RFID partner to ease and ensure the success of your project.
Rugged high frequency tags are specially designed for industrial applications that requires RFID tags which can withstand
harsh environmental conditions!
Our advantage:
We produced the most ruggedized tags that can be withstand stringent environmental conditions.
They are robust enough to be embedded, encapsulated, injected into,
or affixed directly into products that are subjected to extreme processes.
SMALL size- high performance
Utilizing a special antenna manufacturing process, the product line encompasses some
of the smallest size tags available for item-level track and trace applications.
Contact us for free samples !
