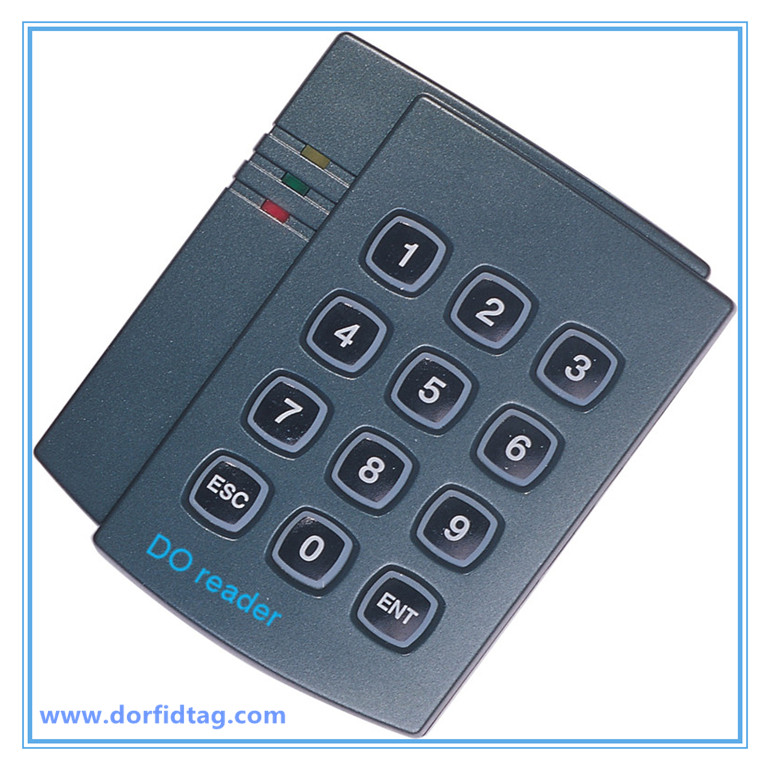

Mid-distance Series of Card Reader read distance 80 to100CM
Model No. :DO-10
Specification
* Size: 260*260*35(mm)
*Dark Grey
*DC12V
*Less than 100mA
*70-100cm proximity distance
*Wiegand 26/34, RS485/232
*Special EM-ID Middle Range Card
*Less than 100M Communication Distance for Wiegand 26. Less 1200M Communication *Distance for RS485
Specification | |
Material | ABS |
Color | Black |
Frequency | 125KHZ |
Communication | Wiegand26/34 |
Support Card Type | 125KHZ EM ID Card |
Built-in | Antenna,speaker,buzzer,red(bule)green color LED |
Current | <80mA |
Voltage | DC 9-16V |
Humidity | 10%-90% Ambient Humidity |
Temperature | -40° C to 70° C Ambient Temperature |
Reading Range | ID:3-10cm |
Warranty | 1Year |
Waterproof | IP65-68 |
Customization | YES |
Communication Distance | The weigand not exceed 100meters |
